Avamar Windows Client AV+DD backup failure with SSL library error

Summary: Avamar Windows Client AV+DD backup failure with SSL library error. Data Domain server "XXXX.com" open failed DDR result code: 5341, desc: SSL library error.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms



Avamar Windows Client AV DD backup failing with SSL library error.


kA23a000000GKBTCA4_3_0



Error Message : Data Domain server "XXXX.com" open failed DDR result code: 5341, desc: SSL library error.

Cause

Verified that all required ports for backup are open and connectivity (ping, telnet on port 28001,30001, 30003, 29000 and 27000, forward/reverse nslookup) from client to Avamar server and also connectivity (ping, telnet on port 111, 2049, 2051 , 2052, forward/reverse nslookup) from client to Data Domain server working fine. The backup was failing because by default high encryption and Auth module is enabled for Data Domain connectivity.

Resolution

There are 2 methods to fix this issue:
1st Method : For the problematic Windows client add the following entries in its dataset. This will disable SSL encryption for backups.
--ddr-auth-enabled=false
--ddr-encrypt-strength=none
kA23a000000GKBTCA4_2_0

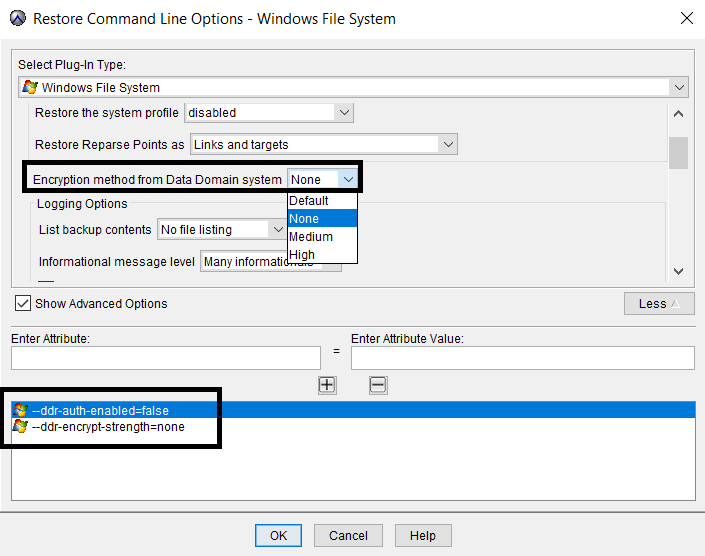

If you are using these parameters for backups use it for restores also for that client. Along with these parameter you also need to change "Encryption method from Data Domain system" option in the dataset from "Default" to "None"
kA23a000000GKBTCA4_2_1
2nd Method : Disable Avamar security features.

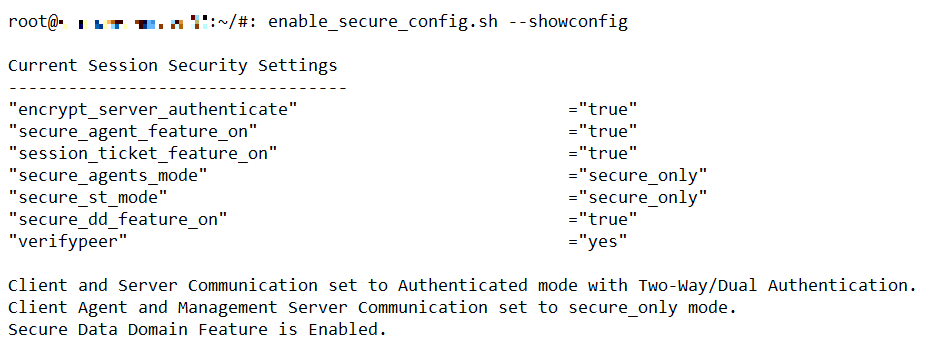

  1. Check the current security settings using the below command (run as root): ## enable_secure_config.sh --showconfig

kA23a000000GKBTCA4_2_2

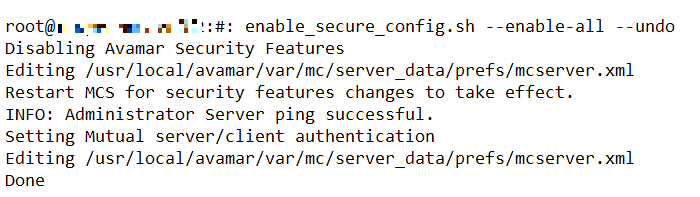

  1. Disable security settings using the below command (run as root):## enable_secure_config.sh --enable-all --undo kA23a000000GKBTCA4_2_3
  2. Restart MCS service (run as admin): ## mcserver.sh --restart


kA23a000000GKBTCA4_2_4

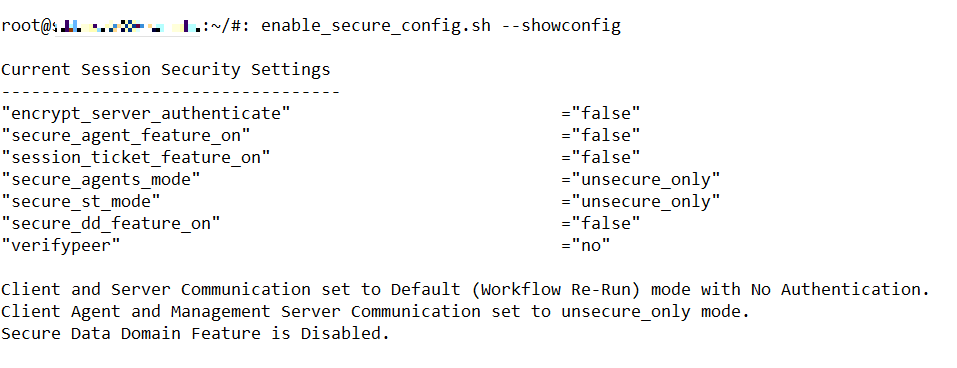

  1. Verify that security setting is disabled (run as root): ## enable_secure_config.sh --showconfig
