Article Number: 000186818

Dell S3422DWG Usage and Troubleshooting Guide

Summary: Learn how to set up and use Dell S3422DWG monitor. Find troubleshooting instructions for common video or display issues.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content

Instructions

Dell S3422DWG monitor

Quick Links

Getting Started with your Dell S3422DWG Dell S3422DWG Setup, Specifications and Service Manual Dell Drivers & Downloads Warranty and Support Services Frequently asked questions

For help with video or display issues such as: no video or no display, blank or black screen, flickering, resolution or color issues, horizontal or vertical lines, etc. refer to an expanding section below.

|

The key features of Dell S3422DWG monitor are:

  • 86.42 cm (34.0 in.) viewable area display (measured diagonally). 3440 x 1440 resolution, with full-screen support for lower resolutions.
  • Supports the high refresh rates of 100 Hz and 144 Hz and a rapid response time of 1 ms in MPRT mode.
  • AMD FreeSync Premium Pro for Tear free, stutter free, low latency HDR gaming.
  •  Color gamut of sRGB 99% and DCI-P3 90%.
  • VESA DisplayHDR 400.
  • Enabled with gaming console VRR supportability.
  • Digital connectivity with DP and HDMI.
  • Equipped with one SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type B upstream port, one SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type-A downstream charging port, and three SuperSpeed USB 5 Gbps (USB 3.2 Gen1) Type-A downstream ports.
  • Plug and play capability if supported by your computer.
  • On-Screen Display (OSD) adjustments for ease of setup and screen optimization.
  • Removable stand and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
  • Tilt, swivel and height adjustment capabilities.
  • Security-lock slot.
  • ≤0.3 W in the Standby Mode.
  • Supports Dell Display Manager.
  • Optimize eye comfort with a flicker-free screen and Comfortview feature which minimizes blue light emission.
Warning: The possible long-term effects of blue light emission from the monitor may damage your eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to reduce the amount of blue light that is emitted from the monitor to optimize eye comfort.

Warning: Do not mount this monitor in vertical orientation due to the risk of damaging the monitor.

This section provides some specifications of the Dell S3422DWG monitor. To learn more about the specifications of Dell S3422DWG monitor, refer to the User's Guide at the Dell Manuals website.

Panel type
  • Vertical Alignment
Maximum resolution
  • 3440 x 1440 at 100 Hz (HDMI1 and HDMI2)
  • 3440 x 1440 at 144 Hz (DP)
Viewing angle
  • 178° (vertical) typical
  • 178° (horizontal) typical
Contrast ratio
  • 3000 to 1 (typical)
Response time
  • 8 ms gray to gray in Fast Mode
  • 4 ms gray to gray in Super Fast Mode
  • 2 ms gray to gray in Extreme Mode
  • 1 ms gray to gray in MPRT Mode
Color gamut
  • sRGB CIE 1931 99%
  • DCI-P3 CIE 1976 90%
Color depth
  • 16.7 billion colors
Ports and connectors
  • 2 x HDMI 2.0 with HDCP 2.2
  • 1 x DP 1.4 port
  • 1 x USB 3.2 Gen1 (5 Gbps) upstream port
  • 4 x USB 3.2 Gen1 (5 Gbps) downstream ports with BC1.2 charging at 2 A (maximum)
  • 1 x Audio line out
  • 1 x Headphone out

Ensuring that your Dell monitor is set up properly. Assembling the monitor stand and setting up the monitor ergonomically. Connecting the cables and organizing them. These will only help make the viewing experience the best it possibly can be.

Attaching the stand

The standard monitor stand is detached when the monitor is shipped from the factory. To learn more about attaching the standard monitor stand. Refer to the Setting Up the Monitor section in the User's Guide of your Dell S3422DWG monitor.
To learn how to set up any other stand with a monitor, refer to the respective stand setup guide for setup instructions.

Caution: Do not remove the monitor from the packaging box before attaching the stand.

Note: The Dell S3422DWG monitor is very heavy; handle with extreme care. It is recommended to have two people to lift or move this monitor.

Ergonomics

Where you put your monitor is almost as important as what model you buy. The monitor should be directly in front of you, at an arm’s length away (between 20-40 inches from your eyes). The top edge of the screen at eye level when you are sitting comfortably. You may need to adjust your chair height or the height of the monitor to achieve this.

Connecting your monitor to the PC

To connect your Dell S3422DWG monitor to your PC:

  1. Turn off your PC and disconnect the power cable.

  • Connect the DisplayPort, HDMI, or USB Type-C cable to the corresponding video or display port on the back of your PC.

Note: Dell S3422DWG supports display over USB Type-C port with Alternate mode DP 1.4. Ensure that the USB Type-C on your PC supports Alternate mode DP 1.2 or above.

To learn more about connecting your monitor to the PC, refer to the Dell knowledge-base article: How do I connect a monitor to a PC?

  • Connect the USB upstream cable to the monitor and PC.

Dell S3422DWG monitor orientation must always be in landscape mode. This includes any wall-mounted monitors and monitors on a stand. In a multiple monitor setup, Dell S3422DWG should not be rotated either to 180° (landscape) or 90° (portrait).

Caution: Dell S3422DWG setup must comply to the recommended panel orientation and working angle only. Setting up the monitor in an orientation that is not recommended may damage the monitor and/or cause a safety hazard.

When setting up your Dell S3422DWG monitor, ensure that the monitor front panel buttons is on the bottom right.

Using the Tilt, Swivel, and Vertical Extension
Note: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for set-up instructions.

With the stand attached to the monitor, you can tilt and swivel the monitor for the most comfortable viewing angle.

Using Tilt and Swivel on Dell S3422DWG monitor

Figure 5: Using Tilt and Swivel on Dell S3422DWG monitor

When mounted on the wall or on a monitor arm, the set-up must comply to the recommended panel orientation and working angle.

Verticalof Dell S3422DWG

Figure 6: Verticalof Dell S3422DWG

Warning: The monitor should not be rotated 180° (landscape). The monitor should not be orientated at 90° (portrait).

Use the buttons on the bottom of the monitor to adjust the image settings.

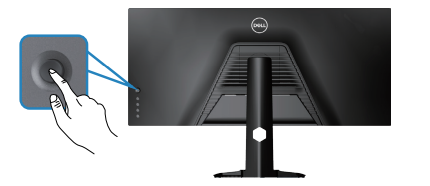

Dell S3422DWG Joystick Control

Figure 1: Dell S3422DWG Joystick Control

Joystick Description
Press
  • When the OSD menu is on, press the button to confirm the selection or save the settings.
  • When the OSD menu is off, press the button to launch the OSD main menu. See Accessing the OSD menu.
Turn Left/Right
  • For 2-way (right and left) directional navigation.
  • Move right to enter the submenu.
  • Move right to enter the submenu.
  • Increases (right) or decreases (left) the parameters of selected menu item.
Turn Up/Down
  • For 2-way (up and down) directional navigation.
  • Toggles between the menu items.
  • Increases (up) or decreases (down) the parameters of selected menu item.

Resetting a monitor to factory defaults can help resolve many video or display issues. To reset your Dell S3422DWG monitor to factory default settings, follow these instructions:

  1. Press Joystick Button to enter the On-Screen Display (OSD) Menu.
  2. Select Menu to adjust the settings of the OSD.
  3. Select Reset Menu under Menu to the factory defaults.

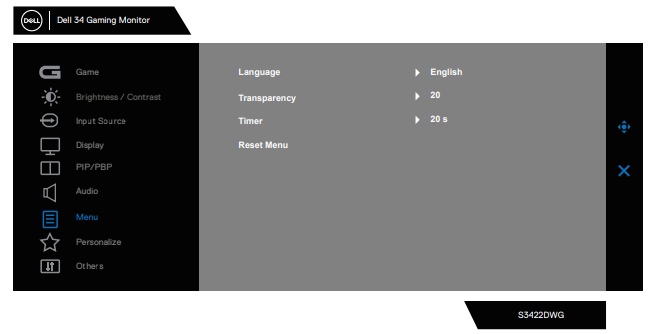

Dell S3422DWG Menu

Figure 2: Dell S3422DWG Menu

If your Dell monitor has a blank or black screen, fuzzy or blurry image, flickering, distorted or any other screen abnormalities, running a diagnostic test will help determine if the Dell monitor is functioning normally. To learn more about diagnostic options on a Dell monitor, refer to the Dell knowledge-base article: How to Run a Diagnostic Test on a Dell Monito

It is always essential to isolate the monitor while troubleshooting your computer for the following scenarios:

  • No Power - Your computer is not powering ON or showing any signs of power.

  • No POST - Your computer is not showing any indication of activity, the screen might be blank and will not display the Dell logo during start-up.

  • No Video - You are unable to see any display on the screen, able to hear the windows chime but no display is seen.

Your Dell S3422DWG Monitor provides a self-test feature check that allows you to check whether the monitor is functioning properly. If the monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

  1. Turn off both your computer and the monitor.
  2. Disconnect all video cables from the monitor. This way, the computer doesn’t have to be involved.
  3. Turn on the monitor.
  4. Turn off your monitor and reconnect the video cable: then turn on both your computer and the monitor.
  5. If your monitor screen remains blank after you use the previous procedure, check your video card (GPU) and computer, because your monitor is functioning properly.

Your Dell S3422DWG monitor has a built-in diagnostic tool. It helps to determine if the screen abnormality you are experiencing is a problem with the monitor or with the video card on your computer.

When you notice screen abnormalities like distortion, clarity, horizontal or vertical lines, color fade, it is always a good practice to isolate the monitor by running the Built-In Diagnostics.

  1. Make sure that the screen is clean (no dust particles on the surface of the screen).
  2. Unplug the video cables from the back of the computer or the monitor. The monitor will now enter self-test mode.
  3. Press and hold the Exit button for four seconds to enter the OSD lock/unlock menu.

    S3422DWG Exit

  4. Select the icon to run the built-in diagnostics.

    run the built-in diagnostics

  5. Carefully inspect the screen for abnormalities.
  6. Press the Right button (button 1) on the back cover again. The color of the screen changes to grey.
  7. Inspect the display for any abnormalties.
  8. Repeat step 6 and 7 to inspect the display in red, green, blue, black, white and text pattern screens.
Note: If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card (GPU) and the computer.
If you notice any abnormalities during Built-In Diagnostics, you may get the monitor repaired or replaced if it is under warranty by contacting Dell Technical Support.

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. Which is hard to see and do not affect the display quality or usability. For more information, refer to the Dell knowledge-base article Dell Display Pixel Guidelines.

This section provides information about troubleshooting steps that can help resolve the most common issues with the Dell S3422DWG monitor. Alternatively, to learn more about troubleshooting common issues on Dell monitors, refer to the Dell knowledge-base article Troubleshooting Display or Video Issues on a Dell Monitor or use our Monitor self-help Guide.

Common Problem What User Experiences Possible Solution
No Video - Power LED Off No picture
  • Make sure that the power cable connecting the monitor is properly connected and secure.
  • Verify that the power outlet is functioning properly using any other electrical equipment.
  • Make sure that the power button is depressed fully.
  • Test with known good cable and known good system if possible.
No Video - Power LED On No picture or no brightness.
  • Increase the brightness and contrast of the monitor through On-Screen Display Menu (OSD).
  • Perform monitor self-test feature check.
  • Check for bent or broken pins in the video cable connector.
  • Reseat both ends of video cable.
  • Try with known good video cable.
  • Run the built-in diagnostics.
  • Make sure that the correct input source is selected via the Input Source Select button.
  • Test monitor with known good system if available.
Poor Focus Picture is fuzzy, blurry, or ghosting.
Shaky or Jittery Video Wavy picture or fine movement.
Missing Pixels LCD screen has spots.
  • Cycle power on-off.
  • Pixel that is permanently off is a natural defect that can occur in LCD technology.
  • Run the built-in diagnostics.
Stuck-On/Off Pixels LCD screen has bright spot.
Brightness Problems Picture too dim or too bright.
Geometric Distortion Screen not centered correctly.
Note: When using DisplayPort input, the positioning adjustments are not available.
Horizontal or Vertical Lines Screen has one or more lines.
Note: When using DisplayPort input, the positioning adjustments are not available.
Synchronization Problems Screen is scrambled or appears torn.
  • Reset the monitor to the Factory Settings.
  • Perform Auto Adjust via On-Screen Display Menu (OSD).
  • Adjust Phase and Pixel Clock controls via On-Screen Display Menu (OSD).
  • Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.
  • Check for bent or broken pins in the video cable connector.
  • Restart the computer in the power safe mode.
Safety-Related Issues Visible signs of smoke or sparks.
  • Do not perform any troubleshooting steps.
  • Contact Dell Technical Support immediately.
Intermittent Problems Monitor malfunctions on and off.
  • Make sure that the video cable is connected properly with the monitor and the computer.
  • Reset the monitor to the Factory Settings.
  • Run the self-test feature and determine if the intermittent problem occurs in the self-test mode.
Missing Color Picture does not have color.
  • Run the monitor self-test feature check.
  • Make sure that the video cable connecting the monitor to the computer is connected properly and is secure.
  • Check for bent or broken pins in the video cable connector.
Wrong Color Picture color is not good.
Image Retention from a Static Image Left on the Monitor for a Long Period Faint shadow from the static image appears on the screen.
  • Use the Power Management feature to turn off the monitor when it is not in use.
  • Alternatively, use a dynamically changing screensaver.
Screen image is too small. Image is centered on screen, but does not fill entire viewing area.
The picture does not fill the entire screen. The picture cannot fill the height or width of the screen.
  • Due to different video formats (aspect ratio) of DVDs and videos, the monitor may display in screen.
  • Run the built-in diagnostics.
No Video, No Display No video when connecting docking, dongle, or Blu-ray DVD players Due to legacy platform cannot recognize or output 5120 x 1440, we suggest changing EDID to lower resolution to cover this compatibility problem.
  1. Remove all input cables, press Button 3 and Button 4 for 5 seconds.
  2. Choose Enable on POP up screen to change max resolution from 5120 x 1440 to 3840 x 1080

To learn more about how to view or download the User Guides and Manuals for your Dell product. Refer to the Dell knowledge-base article Manuals and Documentation for your Dell Product.



Frequently asked questions

How do I set the maximum resolution on Dell S3422DWG monitor?

Using Windows Display Settings

In Windows 10, Windows 8 or 8.1 and Windows 7:

  1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop view.
  2. Right-click on the desktop and click Screen Resolution.
  3. Click the dropdown list of the Screen Resolution and select 5120 x 1440.
  4. Click OK

Using Nvidia Control Panel

To change the resolution using the Nvidia Control Panel:

  1. Right-click on the desktop and click Nvidia Control Panel.
  2. Click the + symbol next to Display on the left pane.
  3. Select Change Resolution under Display.
  4. In the dropdown menu on the right pane, select the resolution 5120 x 1440.
  5. Click Apply.

Using AMD Catalyst Control Center

To change the resolution using the AMD Catalyst Control Center:

  1. Right-click on the desktop and click AMD Catalyst Control Center.
  2. Click the + symbol next to Display on the left pane.
  3. Select Change Resolution under Display.
  4. In the dropdown menu on the right pane, select the resolution 5120 x 1440.
  5. Click Apply.
Note: If you do not see the recommended resolution as an option. You may need to update the video card (GPU) driver by visiting the Dell Drivers & Downloads website or the video card (GPU) manufacturers website. To learn how to download and update a device driver, refer to the Dell knowledge-base article: How to Download and Install Dell Drivers

How do I reset the Dell S3422DWG monitor to factory defaults?

To reset the Dell S3422DWG Monitor to factory defaults, refer to the Reset to Factory Settings section of this article.

How do I run diagnostics on the Dell S3422DWG monitor?

The Dell S3422DWG monitor has two built-in diagnostics that are available:

  • Self-Test Feature Check - The self-test feature check on the Dell S3422DWG monitor allows you to check whether the monitor is functioning properly.

  • Built-In Self-Test - The Dell S3422DWG monitor has a built-in self-test that helps you identify if the screen abnormality is with the monitor or the video card (GPU) on your computer. When you notice screen abnormalities like distortion, clarity, horizontal or vertical lines, color fade. It is always a good practice to isolate the monitor by running the Built-In Diagnostics.

To learn how to run a diagnostic test, refer to the Running Diagnostics on Dell S3422DWG Monitor section of this Dell knowledge-base article.

How do I troubleshoot common issues with the Dell S3422DWG monitor?

The Troubleshooting section of this Dell knowledge-base article provides information about troubleshooting common issues with the Dell S3422DWG monitor. The section has troubleshooting steps on how to resolve power issues, video issues, color or clarity issues, distortion issues, horizontal or vertical lines, brightness issues or pixel issues and so on.




Additional Information

Recommended Articles

Here are some recommended articles related to this topic that might be of interest to you.

Article Properties

Affected Product

Dell 32 Curved Gaming Monitor S3222DGM

Last Published Date

23 Apr 2024

Version

7

Article Type

How To

Back to Top
