OM4 Fiber Optic Cables

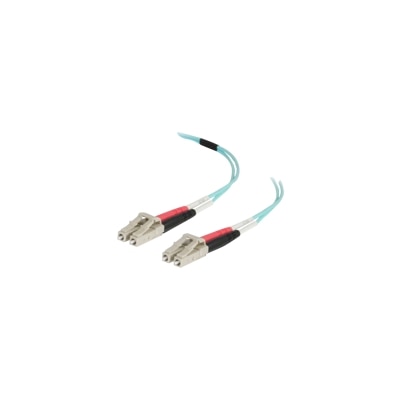

OM4 fiber optic cables are laser-optimized multimode fiber cables designed for fast, dependable transmission across short- and medium-distance connections. They use a 50/125-micron glass fiber core and are commonly recognized by an aqua or violet/magenta outer jacket, making them easier to identify among other cabling during installation or maintenance. OM4 fiber is built around high modal bandwidth, typically rated at 4700 MHz·km at 850 nm, and is well suited to equipment that uses short-wavelength VCSEL transceivers. Depending on the connected hardware, cable length, connector quality, and installation conditions, OM4 can support 1 Gb/s links up to approximately 860 meters, 10 Gb/s links up to approximately 550 meters, 40 Gb/s links up to approximately 150 meters, and 100 Gb/s links up to approximately 100 meters. These figures are useful planning references rather than guarantees for every setup, since actual performance depends on the transceiver, link budget, number of connection points, bend radius, and applicable standards. For straightforward connections between compatible devices, a duplex LC-to-LC configuration is a familiar choice, while LC-to-SC, MTP/MPO, and other connector arrangements can help accommodate existing hardware. Those comparing options for LC-based installations may also find the selection of LC LC Fiber Optic Cables useful when matching connector styles and cable lengths. As with any fiber assembly, inspect the connector ends before installation, keep dust caps in place until the cable is ready to use, and avoid touching the polished ferrule. A small amount of contamination can introduce loss, and a sharply bent cable can affect signal quality even when the outer jacket appears undamaged.

Choosing an OM4 fiber optic cable starts with the layout and the equipment at each end. Measure the route carefully, allowing enough length for gentle bends, service loops, and movement around a cabinet or workstation without leaving a large amount of excess cable to coil tightly. A cable that is too short can place strain on connectors; one that is unnecessarily long can create clutter and make airflow, labeling, or future service more difficult. Duplex cables contain two fiber strands, generally supporting transmit and receive paths for compatible links, while parallel-fiber applications may require an MTP or MPO connector and a cable designed for the specific lane arrangement. Connector polish also matters. UPC connectors are common for many multimode data connections, but the connector type and polish must match the ports or adapters already in use. OM4 should not be selected solely because it has a familiar jacket color; verify that the connected optical modules and adapters are designed for multimode 50/125-micron fiber. It is also important to distinguish OM4 from single-mode fiber and from older multimode categories, as the core construction and supported transmission characteristics differ. For indoor cable runs through air-handling spaces, look for a plenum-rated OFNP jacket when required by local building codes. Riser-rated OFNR cables are intended for vertical runs between floors where plenum requirements do not apply, while low-smoke zero-halogen, or LSZH, jackets may be preferred in locations where reduced smoke and halogen emissions are important. Outdoor pathways, areas exposed to moisture, and routes subject to pulling or crushing may call for a purpose-built outdoor or armored design rather than a standard indoor patch cable. Always follow the installation requirements for the building and the cable itself, including minimum bend radius and allowable pulling tension.

OM4 cables are commonly used by IT professionals, audiovisual installers, telecommunications technicians, laboratories, educational facilities, and businesses that need high-speed optical links between compatible equipment. They can be helpful in communications closets, equipment rooms, media production spaces, test environments, and office layouts where copper runs are not the preferred choice for distance, electrical isolation, or bandwidth requirements. Fiber can be especially practical near sources of electromagnetic interference because glass does not conduct electricity, though the connectors and attached hardware still need appropriate handling and protection. In a busy work area, a neatly labeled aqua or violet cable can make it easier to trace a connection without disturbing neighboring cords; in a compact cabinet, the smaller profile of a fiber patch lead can help keep the front of the equipment organized. Before purchasing, confirm the required length, connector type, fiber mode, duplex or parallel configuration, jacket rating, and transmission speed. Check whether the cable will connect directly to ports or whether adapters, couplers, or breakout assemblies are needed. If a link is expected to operate at 40 Gb/s or 100 Gb/s, verify the lane configuration and maximum supported distance rather than assuming every OM4 cable will deliver the same result. Good cable management also protects long-term performance: route fiber away from pinch points, use broad, gradual curves, secure it without over-tightening, and label both ends with the destination. With the right configuration and careful handling, OM4 fiber optic cables provide a clean, scalable way to connect compatible high-speed equipment while leaving room for demanding applications across changing office, production, and technical environments.
