SIM Card Is Not Detected in Certain Latitude Rugged and Dell Pro Rugged Systems

Summary: Information about certain Latitude Rugged and Dell Pro Rugged systems not detecting SIM cards.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Sim cards are not detected or recognized when inserted into certain Latitude Rugged and Dell Pro Rugged systems.


Affected Systems:

  • Latitude 5430 Rugged
  • Latitude 7330 Rugged
  • Dell Pro Rugged 13 RA13250
  • Dell Pro Rugged 14 RB14250

Cause

This happens because the SIM card is not properly or fully inserted into the SIM slot.

  • Reason 1: Inserted SIM has the incorrect orientation.
    ✔ SIM Card in the Correct Orientation:
    SIM Card with Correct Orientation Example
    ✖ Sim Card in the Wrong Orientation:
    The SIM card is flush with the chassis or protrude.
    SIM Card with the Wrong Orientation Example 1 Sim Card with the Wrong Orientation Example 2
  • Reason 2: The SIM card did not fully insert, and the SIM card is not locked.
    ✔ SIM Card Fully Inserted and Locked:
    The SIM card is fully inserted and recessed into the chassis.
    SIM Card Fully Inserted and Locked Example
    ✖ SIM Card Not Fully Inserted and Locked:
    The SIM card is flush with the chassis or protrude.
    SIM Card Not Fully Inserted and Flush with Chassis Example SIM Card Not Fully Inserted and Protruding from the Chassis Example

Resolution

Insert the SIM Card Fully

Ensure that the SIM card is fully inserted into the correct position and use a tool if necessary. (Example: ID Card, Smart Card, and so forth…)
✔ SIM card is fully inserted and locked.

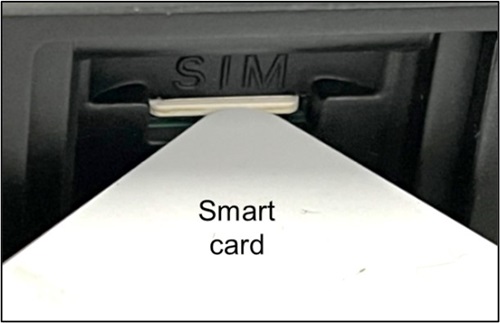

SIM Card Fully Inserted and Locked Example 2 Using a Smart Card to Help Insert a SIM Card Example

Back to Top

Affected Products

Dell Pro Rugged 13 RA13250, Dell Pro Rugged 14 RB14250, Latitude 7330 Rugged Extreme, Latitude 5430 Rugged
